The alwitra® soil vent pipe forms the upper end of vent pipes protruding over low slope roofs with waterproofing of any constructional type up to DN 125 (OD 125).
- The soil vent pipe consisting of one single pipe extends over the roof build-up without any joints and is connected to the downpipe DN 125 (OD 125) and DN 100 (OD 110) below the roof structure by means of the included reducer.
- A corresponding reducer (125/75) is available for downpipes DN 70 (OD 75)
- The connecting flange can be made with EVALON®
Soil Vent Pipes
The alwitra® Shaft (Soil) Vent Pipe serves as the upper termination of vent stacks projecting through low-slope roofs. Manufactured as a single continuous pipe, it passes through the roof build-up without joints and connects to the drainage downpipe beneath the roof deck using the supplied reducer.
As used on landmark architecture throughout the world
40 years experience with waterproofing systems in the UK
Advantages
- The connecting flange can be heat-welded directly to the compatible roof waterproofing membrane, removing the need for additional fixing materials.
- At roof level, the soil vent pipe may remain open or be fitted with the supplied vent cowl for protection. For increased resistance to rainfall, an optional weather cap is also available.
- The lower section, manufactured from polypropylene (PP) and PP bead foam, is positioned within the structural sub-base and sealed to the vapour and wind barrier layers. Once inserted into the vent pipe, this component ensures a secure, airtight connection.
Applications
- Suitable for both warm and cold roofs
Product Details Back to top
Product Specification
| Material: | PVC pipe with vent cowl and optional weather cap made of PP |
| Colour: | black, with factory-fitted connecting flange in the colour of the waterproofing membrane |
| Height above the waterproofing (excl. cowl): | 300 mm |
| Outer pipe diameter: | 125 mm (DN 125) |
| Outer connecting flange diameter: | 480 mm |
| Outer support ring diameter: | 240 mm |
| Ø of screw holes at support ring: | 210 mm |
| Flange width support ring: | 60 mm |
| Installation opening: | Ø 190 (200) mm |
| Thermal insulation thickness: | 0 - 300 mm (or 800 mm for SL) |
| Connection diameter: | 125 mm (DN 125) and 110 mm (DN 100), 75 mm (DN 70) optional |

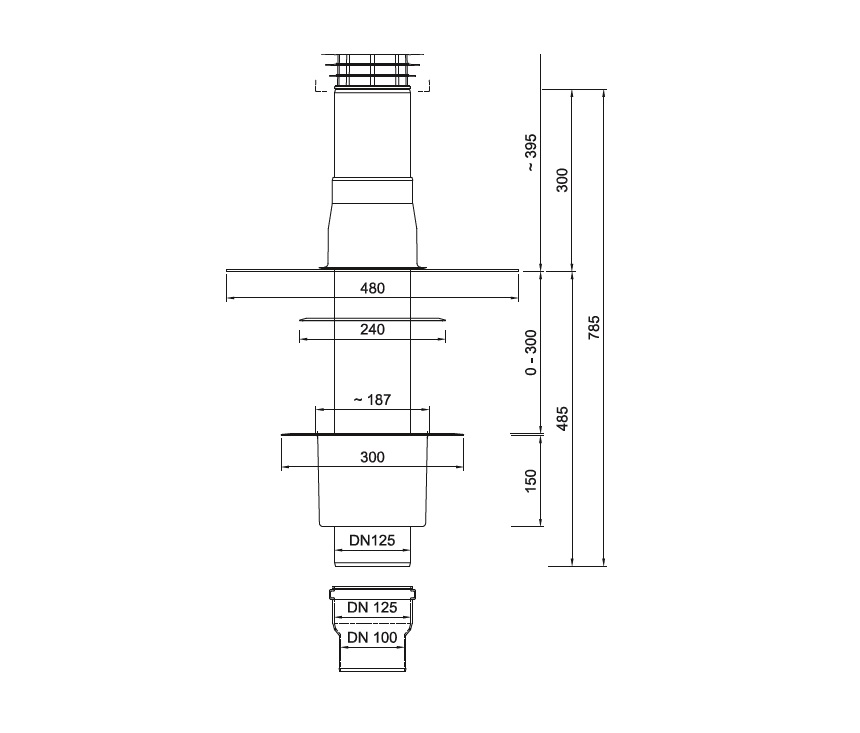

Technical Drawings
